Custom zinc die casting is a highly efficient manufacturing process used to produce specific metal components with excellent dimensional accuracy, smooth surface finish, and strong repeatability. It is widely chosen by OEM manufacturers across automotive, electronics, hardware, telecommunications, medical devices and consumer products because it combines high precision with cost-efficiency in medium to high-volume production.
As one of professional die casting manufacturers, we often recieve these cases like automotive zinc die casting . The customer requires some personalized and tailored design for the specific application. They require our engineering team to collaborate with them, assist to finish these special projects. The feature for custom zinc die casting is high precision and cost-efficiency. This requires us to provide precision cast die, advanced die casting machines, invest well-skilled die casting technician, mass labors and strict quality control system.
What Is Custom Zinc Die Casting ?
Custom zinc die casting is the manufacturing process of producing specially designed metal parts from zinc alloy using high-pressure die casting, based on a customer’s unique drawings, specifications, or functional requirements. Supplier addresses zinc die casting design, precision cast die and mass production, deliver high performance zinc cast parts to cutomer. Custom zinc die casting creates components tailored for a specific product, assembly, or industry application.
The custom die casting involves of OEM and ODM service projects. OEM project means that the supplier requires designing and manufacturing the casting die and arrange the mass production in the term of product’s drawing offered by the client. However ODM project includes zinc die casting part design, the custom casting die design and manufacturing until finish the mass production. And finish the ODM project. It is called as “turnkey project”.
Popular Zinc Alloys For Custom Die Casting
Zamak 3, Zamak 5 is suitable for general hot chamber die casting, and form intended shaped cast part in ease way at lower temperature. The cost for their production is so low, and can meet the common requirements in daily applications, while special application in some fields, ZA series play a great role in automotive parts. For custom zinc die casting, engineers often select the below material.
| Zinc Alloy Model | Feature | Typical Application | Process Type |
|---|---|---|---|
| Zamak 3 | Best all-rounder | General die casting | Hot Chambe die casting |
| Zamak 5 | Higher strength | Automotive / industrial | Hot Chambe die casting |
| ZA-8 | Balanced engineering alloy | Precision strong parts | Hot & Cold Die Casting |
| ZA-12 | Strong + wear resistant | Gears / machinery | Cold chamber die casting |
| ZA-27 | Higher Aluminum element content, Maximum strength | Heavy-duty parts | Cold chamber die casting |
Why Zinc Die Casting Delivers High Precision ?
One of the strongest advantages of zinc die casting is its ability to create accurate and consistent parts. Using high precision steel die to form the lower melting point metal under pressure. achieve solid integrated metal part at fast cycle time. The stable and repetitive operation can create high quality and tight-tolerance dimensional cast parts at high volume mass production.
A High Precision Casting Die Design And Manufacturing
High precision casting die design and manufacturing is the foundation of producing dimensionally accurate, high-quality metal casting parts for industries such as automotive, electronics, telecommunications, aerospace, medical devices, and industrial equipment. In modern manufacturing, the performance of a casting die directly determines the casting quality, production efficiency, product consistency, and overall manufacturing cost. So custom zinc die casting high precision is contributed by the high precision casting die directly.
Design Phase #
Our work-experienced engineer can design custom casting die with cutting-edges 3d modeling software, like solidwork, ug, ux and CAD. After finishing the design of the mold, they need some metal flow simulation testing tools to verify the performance of the mold, often use MAGMAsoft and FLOW-3D CAST tools to test it, and predict some errors in die casting process, and have a troubleshooting for problems ahead. Of course, considering of some of the blew factors that impact custom casting die design.
- Material Selection: Choose the right tooling steel, like H13 or 8407 steel, and have a supperior surface finishing treatment, maybe quenching if necessary.
- Die Component Design: Core, Cavity, Gate and vent channel, molten metal flow channel, cooling system and ejector mechanism.
- Part Design Factors: Draft angles, Wall thickness, Shrankage allowance, Ejector pins and two halves of mold alignment.
- Mold Flow Simulation Testing: FLOW-3D CAST is the best testing for zinc die casting, The further optimization of the intial cast die.
- Thermal balance analysis: Proper temperature ensure full molten zinc in the pool, adjusting uniformly cooling temperature on the surface of the cast part, avoid cold shut and crack defects.
Manufacturing Phase #
After finishing the design of the precision custom cast die, engineer transfers the design files into 2d drawing documents, and hand these documents to mold technician for perfect manufacturing. Mold technician will process high hardness steel block into high precision casting die, Mold technician enables different mode of varying precision rely on the cast part dimensional accuray.
| process | tolerance | Application |
|---|---|---|
| Standard zinc casting die | ±0.1 mm | General Decorative products, |
| Precision Zinc Die Casting Die | ±0.02–0.05 mm | Electrical connectors, EMI Shielding housings |
| Ultra-precision Zinc casting die | ±0.005–0.01 mm | assemblies and sensor housings in automotive industry |
Zinc Casting Die Trial Testing Phase #
The precision casting die manufacturing is over, our mold technician have a trial testing for its performance, they install the die on the computer numerical control die casting machine, and set up the cast prameters and begin having a trial cast, and observe and adjust times until casting the qualified prototypes. Record the operation parameters and travel. And maintain the high performance of the die steadily.
- Alloy Selection: Common alloys include Zamak 3, Zamak 5, and ZA-8
- Die Temperature: Typically maintained at 300-400°F (150-200°C)
- Cycle Times: Faster than aluminum due to lower melting point
- Die Life Expectancy: 500,000-1,000,000 shots with proper maintenance
Mass Production For Custom Precision Zinc Die Casting
Mass production for custom precision zinc die casting is implemented by numberical control machine, automation production line and robotic hands operation, The correct operation procedures and automated conveying systems ensure high-efficiency production of high-precision zinc die casting parts with consistent quality and stable output.

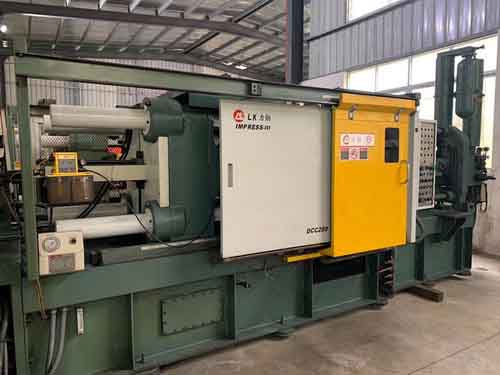

Numberical Control System Operation

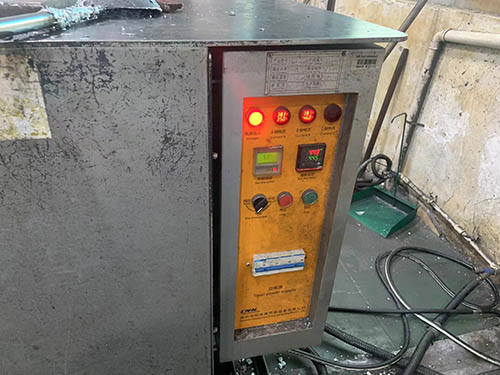

At lower temperature, zinc die casting can create precision as-cast part with tigh-tolerance dimension and high strength in short time. The process is controlled by digital technique, which controls the cast cycle time delicately. It includes the molten metal filling time, the cavity of the die temperature, cooling time and opening mold time. The die casting machines can work within the set time repetitively and finish high effective mass production at high volume.

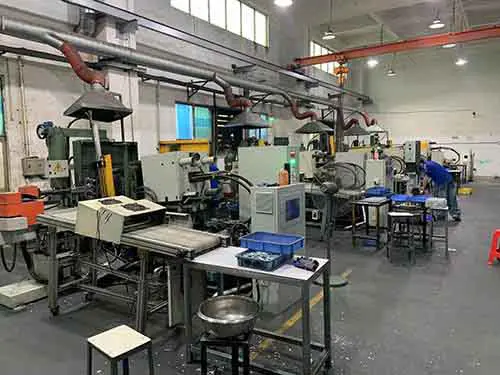

Automation Production Line
Automated robotic handling and conveyor systems transport as-cast components directly from the die casting machine through deburring, quality inspection, and packaging processes without interruption. This streamlined production flow enhances workplace safety, eliminates manual handling of hot castings, reduces human error and rework, and significantly improves manufacturing efficiency and delivery performance.

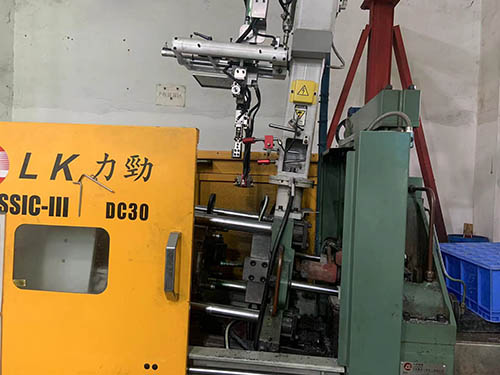

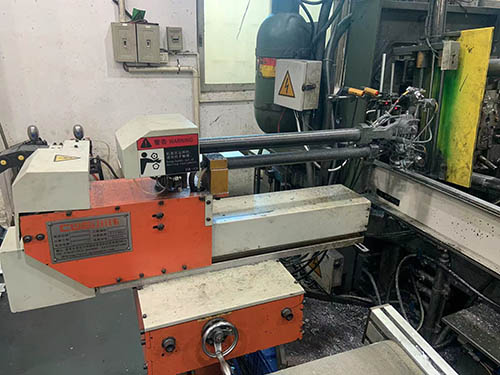

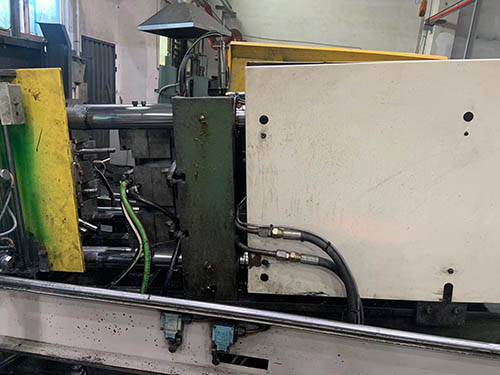

Robotic Hands
Automated robotic arms are controlled by advanced computer numerical control (CNC) and intelligent automation systems, enabling them to accurately and consistently remove cast parts from the die immediately after each casting cycle. Compared with manual operations, robotic handling significantly improves positioning accuracy, production stability, and workplace safety.
Spectrum Inspection Instrument
Some custom zinc die casting parts demand ultra-precision dimensional tolerances of up to ±0.02 mm and high-quality surface finishes. To ensure dimensional accuracy and reliable assembly performance, manufacturers use Coordinate Measuring Machines (CMMs) for comprehensive quality inspection. CMM measurement verifies critical dimensions, geometric tolerances, and part consistency, helping deliver high-precision zinc die cast components that meet stringent customer specifications.
Custom Zinc Die Casting Is Cost-Efficiency
Zinc die casting is highly cost-effective and efficient to manufacture compared with many other metal materials, such as aluminum, iron, and copper alloys.
1. Lower Heat Energy Consumption
The lower melting temperature of zinc alloys, typically around 380°C–420°C, whereas aluminum alloys generally require melting temperatures of approximately 660°C or higher. The lower melting point of zinc alloys significantly reduces energy consumption during the melting process, resulting in lower production costs and improved manufacturing efficiency. In contrast, aluminum die casting requires higher furnace temperatures and greater electricity consumption, increasing overall production expenses.
1. Fast Production Cycles
Hot chamber die casting machines operate quickly, making them ideal for large production volumes. Short cycle times mean more parts per hour and lower unit cost. At lower temperature zinc cast part can be cooled and solidified in very short time. with less cold shut, bend defects.
2. Long Tool Life
Compared with aluminum die casting, zinc alloys melt at lower temperatures, causing less thermal stress on molds. As a result, zinc die casting tools often last significantly longer. We can using the longer life tool, product more high quality zinc die casting cast parts.
3. Reduced Secondary Machining
Because zinc castings are highly accurate, with high precision steel die, cast high precision, superior surface finish cast part repetitively and fastly, with less CNC machining is needed after casting. This saves labor, machine time, and production cost.
4. Material Efficiency
Zinc scrap generated during production can often be recycled, helping reduce raw material waste. Like the excess material deburred by machines during the post-processing for our as-cast parts, and defective goods, which be remolten, and reused completely.
In summary, the custom zinc die casting is cost-efficiency manufacturing process, but the process must follow the requirement of OEM manufacturer production. The custom process requires providing high precision cast parts and much more cost for client.

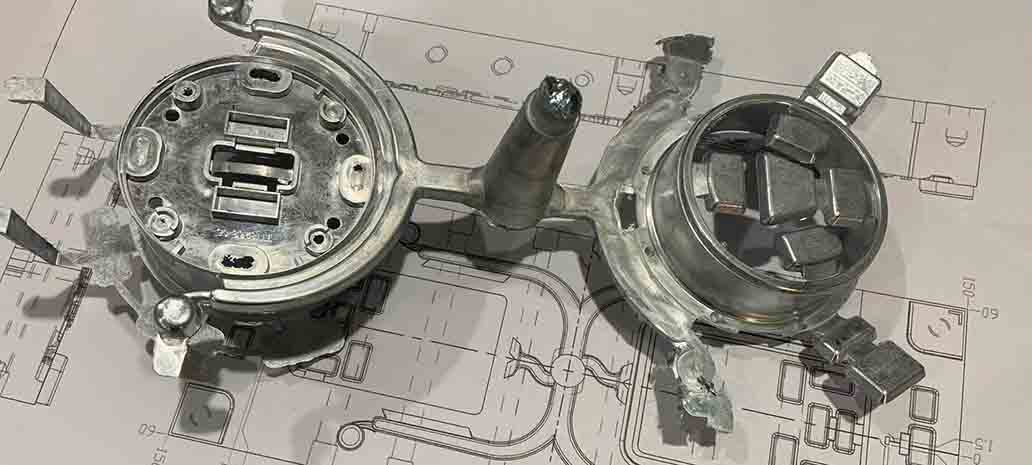

Custom Zinc Casting Classic Case Studies

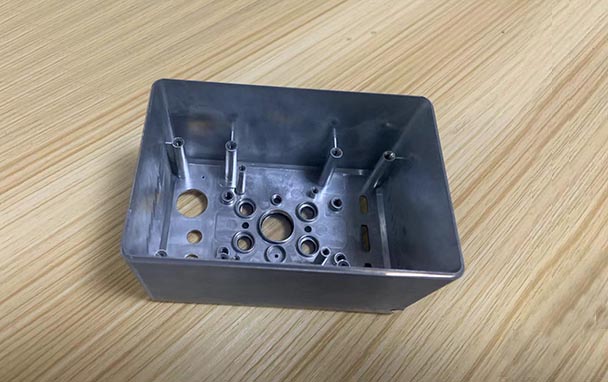

Zinc Die Casting Camera Housing
Zinc die casting camera housing is durable and lower cost. With it to replace aluminum camera housing will save much expense in Communication and network deployment.
Car Usb Charger Display Panel
clever business men created car charger, and make recharge the smart phone more easily. Car USB charger display panel should be made out to come with the just car charger.

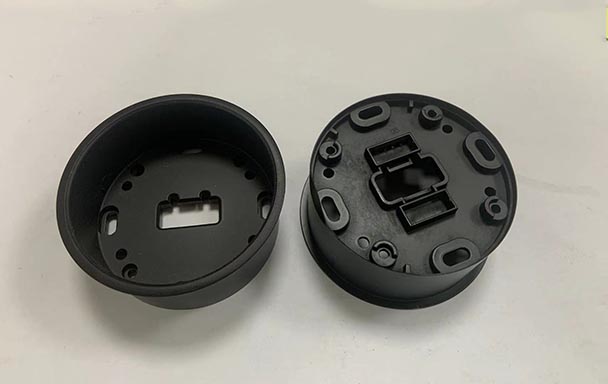

Zinc Cast Luxious Switch Box
Zinc die casting switch box, which has steady integrated structure,tight tolerance dimension and personalized design appearance. Because the metal switch box is portable and durable.
Die Casting Project Quote
China zinc die casting manufacturer to finish your project? If you want, please contact us by Email here !
Ts Die Casting Technology Custom Zind Die Casting Manufacturing Capability
At TS Die Casting Technology, manufacturing capability is at the core of every custom zinc die casting project. Our experienced engineering team collaborates closely with customers during the product development stage to conduct comprehensive Design for Manufacturability (DFM) analysis before tooling production begins. By evaluating part geometry, wall thickness distribution, draft angles, parting line locations, gate and runner systems, ejector pin placement, tolerance requirements, and surface finish specifications, we identify potential manufacturing challenges early and provide practical engineering solutions that reduce production risks and improve overall product performance.
The factory had been engaging for various die casting development and manufacturing for 15 year since the company was found. Our experienced quality engineers work closely with production and tooling teams to establish control plans, inspection standards, failure analysis procedures, and continuous improvement initiatives. The high precision zinc die casting projects involve automotive, communication, consumer electrics, medical and industrial components.
Our zinc die casting engineers optimize component designs to achieve excellent metal flow, minimize porosity, prevent shrinkage defects, and enhance dimensional stability throughout the casting process. Through advanced tooling design and simulation analysis, we ensure that complex features such as thin walls, intricate details, threads, undercuts, logos, and decorative surfaces can be manufactured efficiently while maintaining high precision and repeatability.

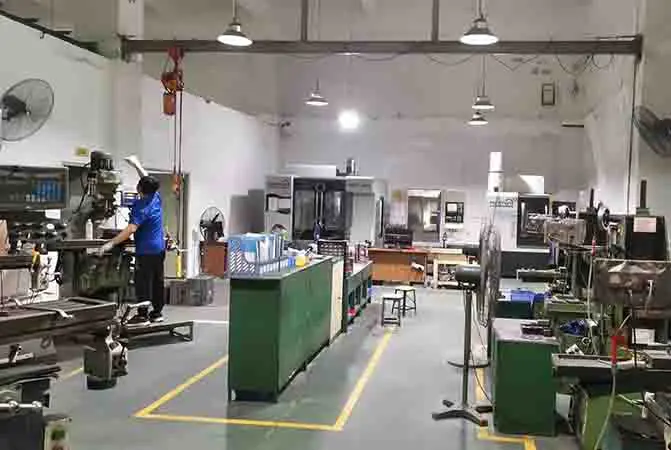

Tooling Manufacturing Capability In House
Introduces advanced cnc flat grinding machines, cnc milling machines, cnc machining center 850, WEDM and EDM equipment.
Rapid Prototypes
Metal Flow analysis, die thermal handling, improve and optimize cast die design, and make high performance cast die, and have a trial cast test, make first sample.
During mass production, our robust process control systems ensure consistent casting quality from the first part to the millionth part. By optimizing injection parameters, die temperature management, cooling systems, trimming operations, and quality inspection procedures, we achieve exceptional dimensional accuracy, superior surface finishes, and high production yields. Combined with our precision machining, surface finishing, laser marking, assembly, and packaging capabilities, TS Die Casting Technology provides customers with complete turnkey manufacturing solutions from concept development to finished products.

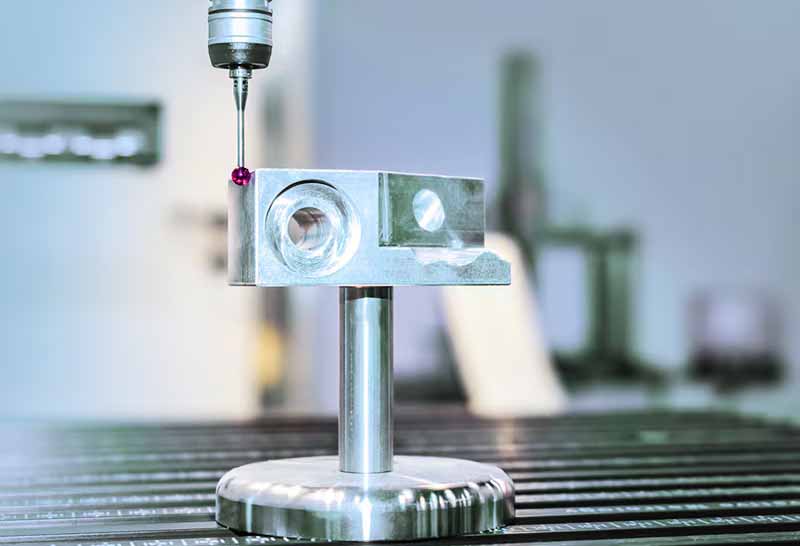

implements strict quality assurance procedures to maintain process consistency and product conformity. Critical dimensions are verified using advanced Coordinate Measuring Machines (CMM), optical measurement systems, gauges, and specialized inspection equipment. Statistical process control methods are applied to monitor production trends, identify process variations, and prevent quality issues before they impact production output.
Part Category
Typical Dimensions
Typical Weight
Micro Precision Parts
5–30 mm
0.5–20 g
Small Components
30–100 mm
20–200 g
Medium Components
100–300 mm
200 g–2 kg
Large Components
300–600 mm
2–8 kg
Extra-Large Custom Parts
600 mm+
8 kg+ (specialized equipment required)
Professional Automotive Components Manufacturing Certified Enterprise,

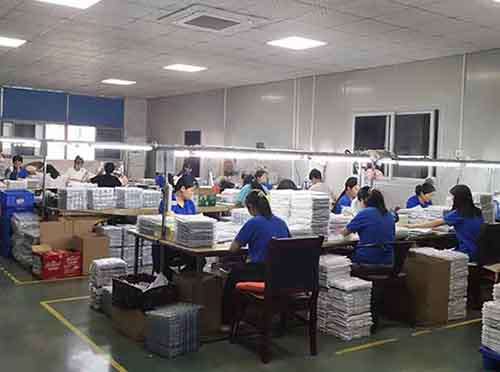

Complete Post Processing Workshop, polishing, deburring and grinding.
Material Incoming Inspection, testing, assemblies and final package
Die Casting Project Quote
Find one of professional zinc die casting factory to finish your project? If you want, please contact us by Email here !
Conclusion
Custom zinc die casting is a proven manufacturing method that combines high precision and cost-efficiency. It allows complex, accurate, and durable parts to be produced quickly and economically, especially in medium to high volumes.
With proper mold design, alloy selection, and quality control, custom zinc die casting can deliver outstanding results for automotive, electronics, hardware, medical, and consumer industries.
Common Generic FAQ
What tolerance can custom zinc die casting achieve?
High-precision zinc die casting can typically achieve ±0.02mm to ±0.05mm depending on part geometry and tooling quality. If you require ultr-precision cast parts, ts die casting technology works with high precision cnc machining and lathe and resolve your difficulty.
What is the best zinc alloy for die casting?
Zamak 3 is the most widely used alloy due to its excellent dimensional stability and surface finish. It is suitable for complex structural miniatrue electric components and thin-walled precision cast parts.
Is zinc die casting cheaper than aluminum die casting?
For custom precision metal components, zinc die casting is often 20–30% more cost-effective than aluminum die casting. The process benefits from faster production cycles, lower melting temperatures, reduced energy consumption, longer mold life, excellent dimensional accuracy, and minimal machining requirements. These advantages enable manufacturers to produce high-precision zinc die cast parts with lower overall manufacturing costs while maintaining superior surface quality and consistent performance.
