Custom zinc die casting services just meet some special and personal requirements in some industries. In modern manufacturing, the demand for intricate, high-precision components continues to rise across industries such as automotive, electronics, telecommunications, and consumer products. Precision zinc die casting just meets the current demand for high cost-efficiency, high precision, tight-tolerance dimension and flexible structural and apperance design in many industries.
Zinc alloys, particularly Zamak and ZA series, offer unique advantages in fluidity, strength, and dimensional stability, making them highly suitable for manufacturing geometrically complex parts. This article explores oem zinc die casting part design considerations involved, and expert recommendations to optimize results.
Zinc Die Casting Excels at Precision OEM Cast Parts
Zinc die casting offers flexible 3d model design and perfect cast die design, make high precision durable steel tooling, using advanced techniques of complex geometry, creates repeatedly consistent high precision die casting parts at cost-efficiency.
1. Superior Fluidity and Castability
One of the most important characteristics of zinc alloys is their excellent fluidity. This allows molten zinc to flow easily into intricate mold cavities, filling thin walls, sharp corners, and fine details without defects.
2. High Strength and Ductility
Compared to other castable materials, zinc offers an excellent balance between strength and ductility. This allows complex parts to maintain structural integrity even with thin sections and intricate geometries.
3. Flexible 3d Model Design
The most common industrial manufacturing allows engineer to design flexible 3d model of product, then uses the cast die to wrap the model, creates the design for the mold. Flow simulation Tool is used and testing, after imrovement and optimization for the initial design, at final, perfect cast die design is completed.
4. High Precision Cast Steel Die Manufacturing
Considering of high effective mass production at cost-efficiency for zinc die casting, high precision cast steel die manufacturing is essential. The steel die should be longer life time and high wear resistance, endure timely impact and wear out at 400 degrees or so. It can create consistently tight-tolerance dimensional and superior surface finish until the die is waste.
5. Advanced Techniques for Complex Structural Parts
Some advanced cast techniques are adopted when project require to make some complex geometry in zinc die casting. Engineers need making some complex functional design for the cast die aim to special functional cast parts. These common advanced techniques are listed the below.
Multi-Slide Die Casting
Multi-slide (or four-slide) die casting machines are particularly suited for highly complex, small zinc components.
Insert Molding
Zinc die casting allows integration of other materials
Thin-Wall Engineering
With proper design and process control, zinc die casting can achieve ultra-thin walls while maintaining strength.
Superior Surface Finishing for Zinc die casting parts
Complex shapes often require high-quality surface finishes for both functional and aesthetic purposes.For intricate geometries, Our expertise engineer James Chen said “surface finishing processes must be considered during the design stage. Deep recesses and blind holes may affect coating uniformity.”
In zinc die casting, die casting engineering offers major advantages when producing complex-shaped components, especially for automotive, electronics, communication, hardware, and consumer product industries. That dues to the above significant advantages of zinc die casting. The OEM zinc die casting parts achieve high-precision and highly detailed metal parts for personlized or tailored project very easily at best cost-efficeincy.
OEM Zinc Alloy Die Casting Solutions

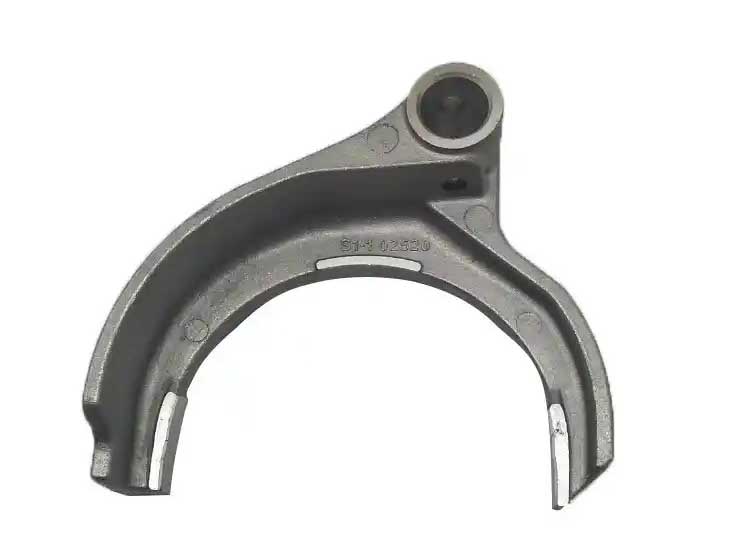

OEM zinc alloy die casting solutions provide manufacturers with flexible production options for customized industrial applications. Zinc alloys possess excellent mechanical and physical properties. Zamak 3 and Zamak 5 are common castable material for general daily goods, while ZA-8, is suitable for wear resistance and higher strength hardwares and automotive zinc cast parts through hot chamber die casting at lower temperature. ZA-12, ZA-27, in which higher aluminum element content, require cold chamber die casting machines to form the cast parts.
Common zinc alloy materials include:
| Zinc Alloy | Feature | Process Technique | Application |
|---|---|---|---|
| Zamak 3 | excellent balance of strength, ductility, and casting performance | Hot chamber die casting | general industrial and consumer |
| Zamak 5 | improved strength and hardness compared with Zamak 3 | Hot chamber die casting | automotive and mechanical components requiring higher durability. |
| ZA-8 | wear resistance, tensile strength, and creep resistance | Hot & Cold chamber die casting | complex structural precision parts |
| ZA-12 | Higher hardness, high corrosion resistance | Cold chamber die casting | Lightweight, excellent heat dissipation automotive components |
| ZA-27 | Best strength in zinc alloy, Highest hardness, hightest aluminum element content | Cold chambe die casting | Lightweight automotive bear-loading structructual parts in automotve and aerospace industries |
OEM zinc alloy die casting services can support:
- Custom tooling development
- Prototype manufacturing
- Multi-cavity mold production
- Insert casting
- Thread forming
- CNC secondary machining
- Assembly integration
- Surface finishing solutions
Zinc Die Casting Applications
Zinc die casting applications become more and more popular with rapid growth of individualized needs and booming of newly industries. The cost-efficiency manufacturing process can create small and medium sized accurate dimensional and superior surface finish metal parts, with minimizing post-process. It is suitable for utilization in many industries already.
| Industry | Application |
|---|---|
| Automotive Industry | Door lock mechanisms, Fuel system components, Structural brackets |
| Electronics and Telecommunications | Connectors, Enclsoures, Housings and heat sink |
| Consumer Products | Decorative hardwares, appliance components, precision mechanical parts |
| Industrial Equipment | gear housings, valve, faucet and fittings |
| Medical and Health Industry | diagnosis device housings |
| Furniture | handles, hinges and brackets |
Surface Finishing for Zinc Die Cast Parts
TS die casting technology provides various surface finishing solutions based on customer requirements and application environments. This improves and enhances the lifespan, aesthetic appearance, wear resistance, and corrosion resistance of zinc die cast parts. For zinc die casting parts, which has superior smooth surface, allows the below surface finishing approaches to decorate and protect them.
- Electroplating: Satin-nickel plated, gloss chrome-plated, enhance wear resistance and corrosion resistance of these cast parts.
- E-Coating(Electrophoretic Coating): The coating approach requires cleaning an removing the dirt, grease, impurities on the surface of the cast parts, then uses electricity to deposit paint evenly onto conductive metal parts. Achieve excellent smooth surface coating.
- Powder Coating: The process doesn’t too smooth surface, spraying thermal color paint to the surface of cast part evenly, and dry them in the oven with proper temperature, immerse the tough surface and cover it.
- Painting: Using gun to spray the color paint on the surface of the cast part, dry it naturally.
- Polishing: polishing and buffing the tough surface of as-cast part, makes the surface of part more smoother, even to mirror-reflecting effection.
- Sand Blasting: Using high pressure micro-particles to hit the burrs on the surface of as cast parts, makes part surface more smoother.
- Passivation
- CNC Secondary Machining: Removing excess material on the cast part, machine the as cast part into accurate dimensional precision metal workpiece.
Ts Die Casting Technology Offers Professional Custom Zinc Die Casting Services
Ts die casting technology have been engaging in die casting manuacturing for 16 years, and always provides consistent high quality metal die casting components to the client and business partners, include of zinc die casting and aluminum die casting. The zinc die casting manufacturer has abondant design team, strong production ability and strict quality control system, deliver sound custom zinc die casting services to you.
Well-experienced Engineering Design Team
Our engineering design team is composed of 9 persons,who are devided into 3 units, responsible for the design and execution of overall project progress respectively. At begining of project, recieve the design concept or drawing from the client, engineers require drafting the 3d model of intial visual product or treating custom design drawing. According to their practical experience, design 3d model is satisfied with the client. Then design the special cast die. and conduct the precision steel tooling manufacturing until qualified prototype is born.
Advanced Die Casting Equipment And Automation Production Lines
Digital control hot chamber die casting machines are introduced, equiped with robotic hands and automation production lines. Replace traditional humen being actions with mechanical operations. Reach high effective mass production at high volume, avoid humen being bodies hurts.
Rigidous Quality Control System
Spectrum Inspection instruments And X-ray scanners are used for high precision cast parts and raw material compostion. Implement IQC check for incoming goods, IPQC check on full-process, QF Inspection and QA strategy. Ensure 100% quality ensurance for shipped goods.
Material Selection and Alloy Customization
Customized zinc die casting requires selecting the right zinc alloy to cast reasonable metal parts. different industrial standard decides the metal properties and practical demands of the custom cast part. Zamak series are suitable for common weight, strength and corrosion resistance. While light weight and same features, ZA series are selected.
Versatile Surface Finishing Approaches
Surface finishings for custom precision zinc cast parts require various approches, at ts die casting technology has its own supply chain integration system, and meet versatile requirement, enven to induvidual requirement. Rely on the different demand, these surface finishings may extend the life time, decorate appearance and some special functionalities. Such as Powder-coating, painting, polishing, PVD coating and cnc machining, chrome conversion coating ect.
Cost Efficiency and Pricing Models
Zinc die casting is highly cost efficiency industrial manufacturing process, which create high precision various metal parts at lower temperature. Customized die casting pricing models are made depends on castable raw material and complex extention of the cast part.
Conclusion
Custom zinc die casting services just meet some special and personal requirement in some industries. These custom zinc parts have unmatched advantages in precision, repeatability, and the ability to produce intricate geometries that would be difficult or costly with other manufacturing methods.
However, these impact factors for zinc die casting design are considered available, certainly the client can choose the top die casting manufacturer to finish their projects. Like some complex structural and intricate appearance cast parts.
